VIJVERHOEK

Renovation and extension of a house in rural area

Location
Oosterzele
Program
single family house
Surface
450 m2
Phase
built
Year
2020
VIJVERHOEK Renovation and extension of a house in rural area, image of front facade

Contrary to the client’s original request to demolish, an existing house in a rural area is being renovated and extended. The profile of the existing house with its various annexes and stables is taken as a starting point.
The house consists of 2 parallel volumes, connected by an intermediate volume and organised around an enclosed patio. In line with the original house, the front building has 2 storeys with a pitched roof. The rear building has 1 storey and a single-pitched roof. Between the two buildings exists several interesting views, filtered or not by the vegetation in the patio. On the ground floor of the house the living room is located with an open view to the fields behind, as well as a guest room with sanitary facilities. On the first floor of the building at the street side, which overlooks the lower rear building, the bedrooms are organised.
The organisation of the house into 3 linked volumes offers various possibilities for evolving into kangaroo housing in the future. A division into 2 dwellings is possible both horizontally (ground floor-first floor) and vertically (front-to-back).
The house consists of an exoskeleton of masonry into which a wooden load-bearing structure is slid. To this end, the classic brickwork of the original house is complemented by large-format block masonry. By chalking both parts, only a subtle reference to the original house remains. The wooden supporting structure is completely filled with cellulose so that the house achieves sufficient inert mass to maintain a proper indoor climate in both summer and winter.

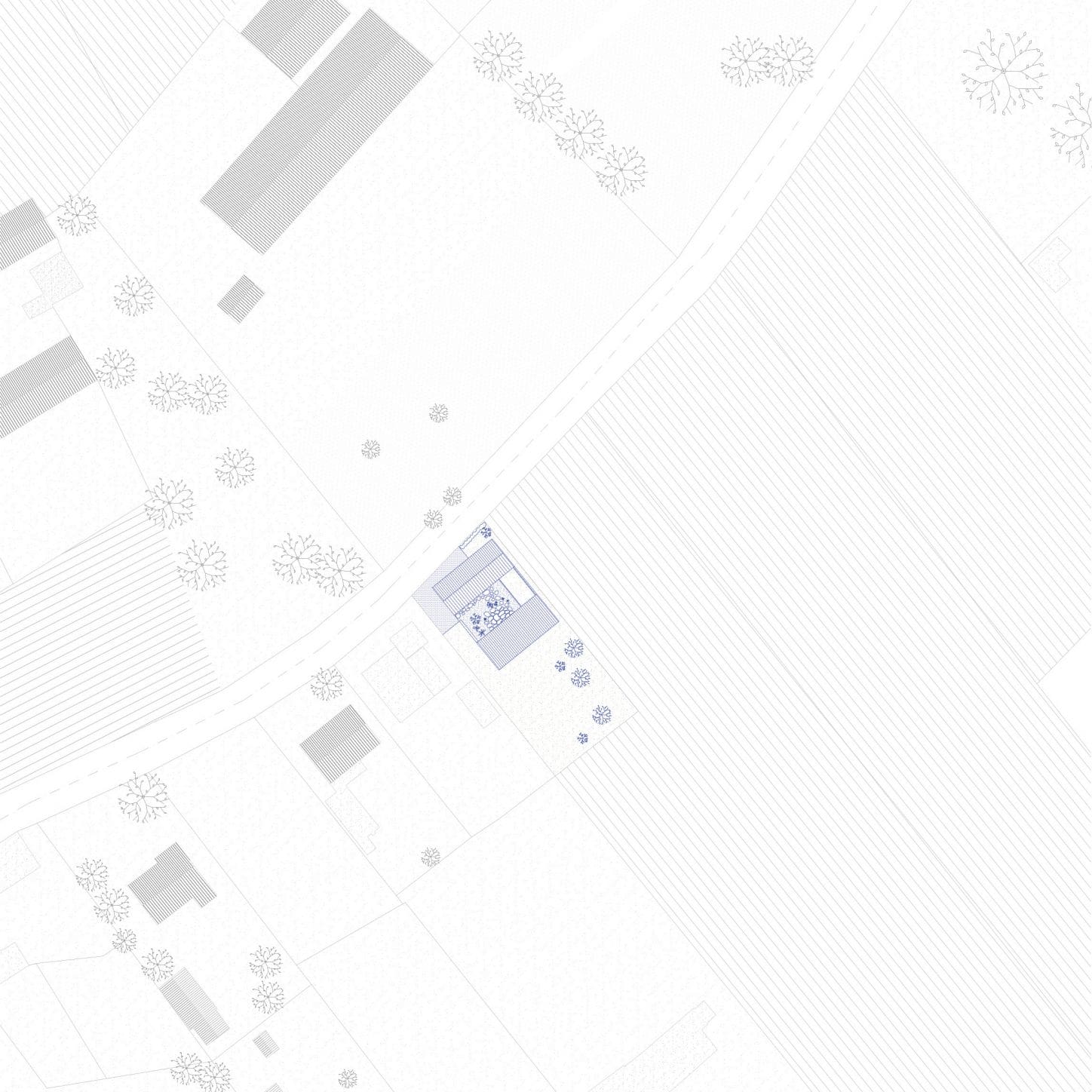

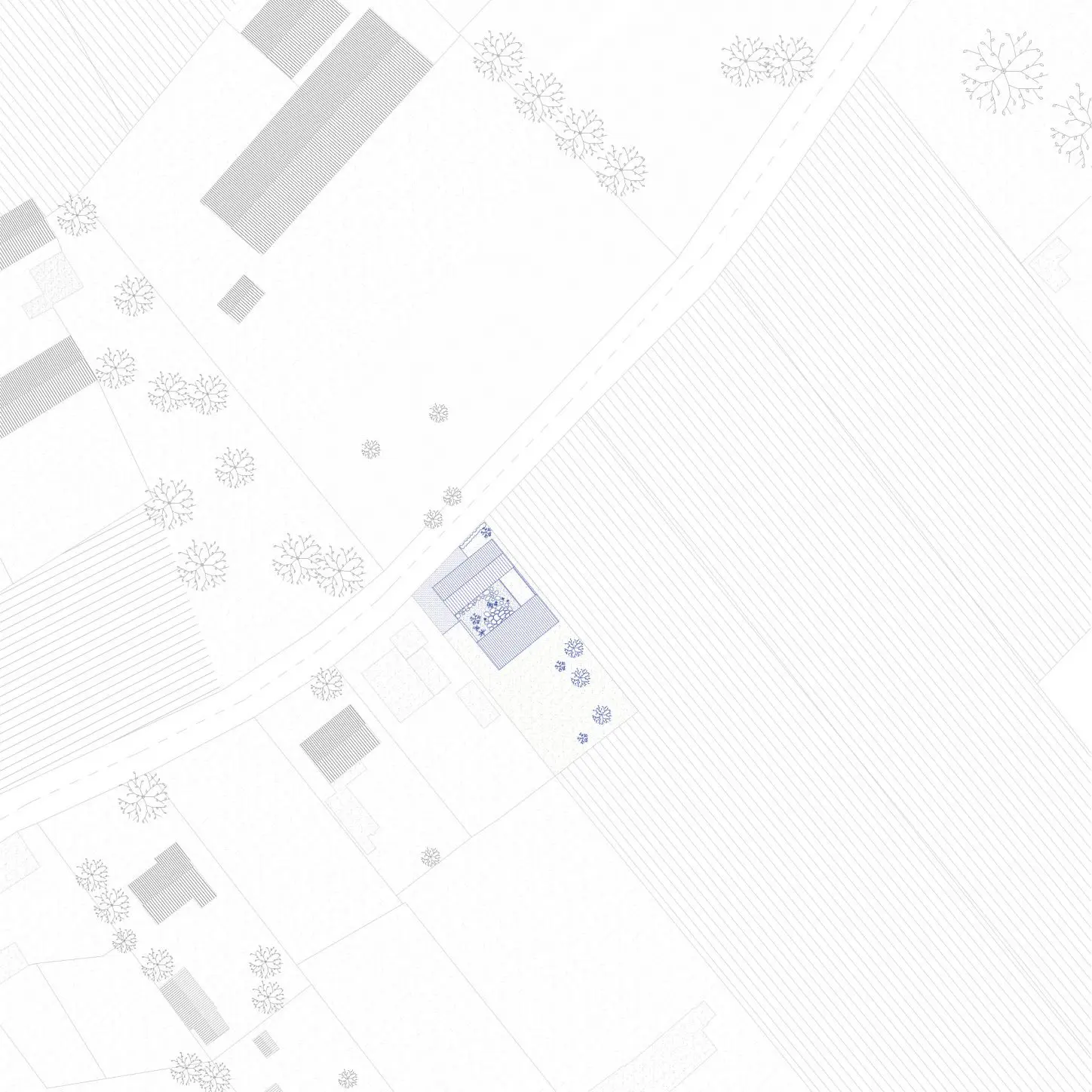

VIJVERHOEK Renovation and extension of a house in rural area, site plan of the new house organised around a central patio
site plan

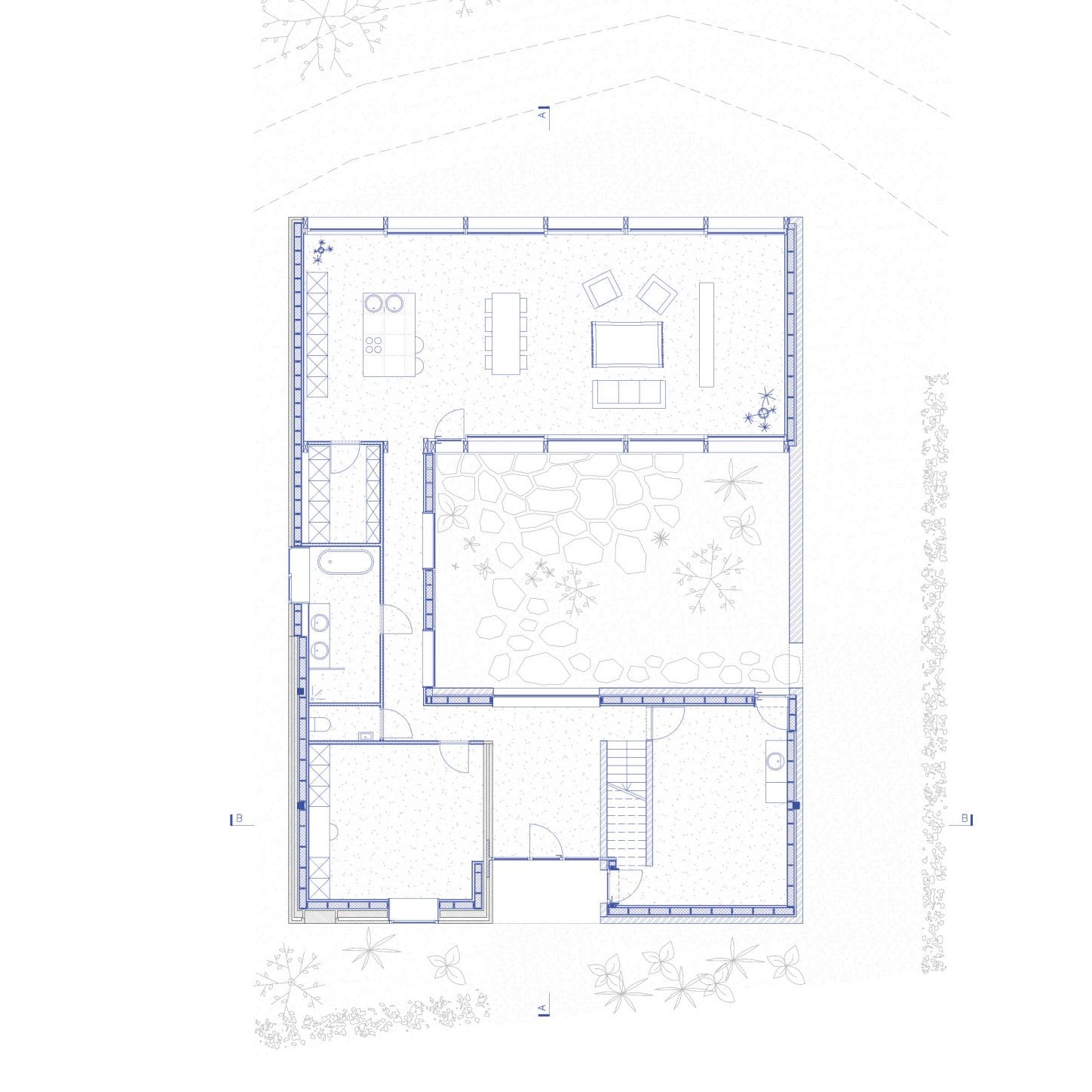

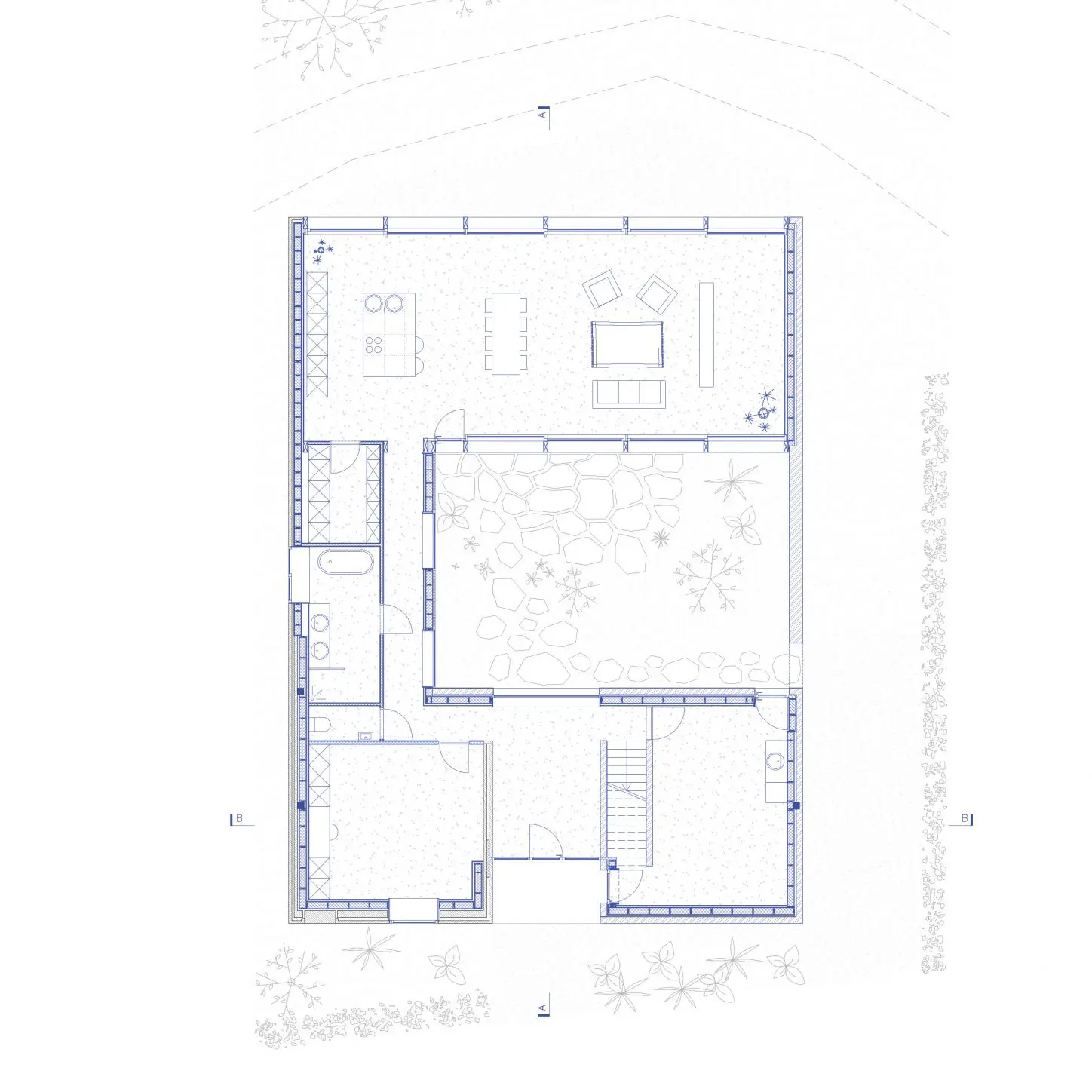

VIJVERHOEK Renovation and extension of a house in rural area, ground floor plan of the new house organised around a central patio
plan groundfloor

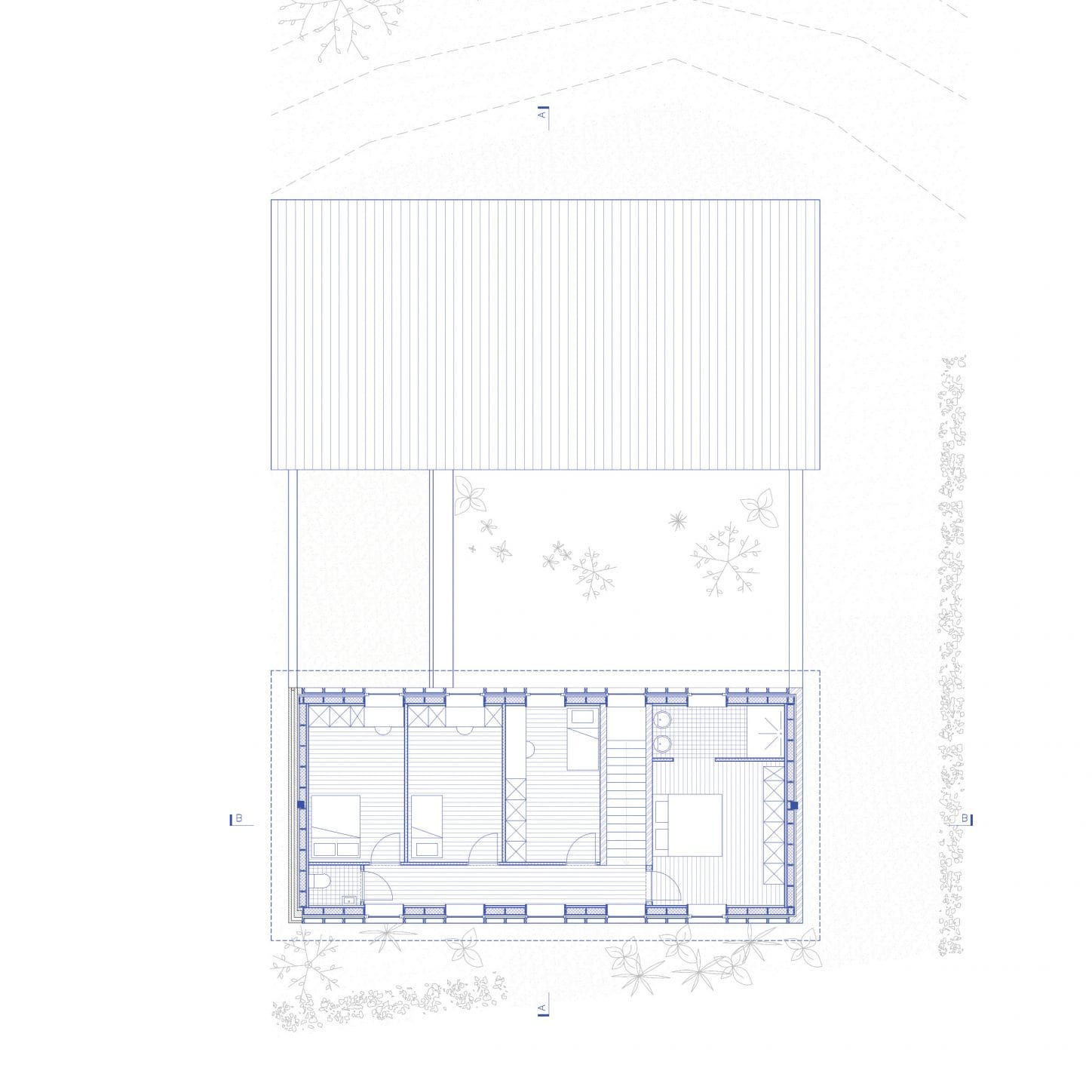

VIJVERHOEK Renovation and extension of a house in rural area, first floor plan of the new house organised around a central patio
plan first floor

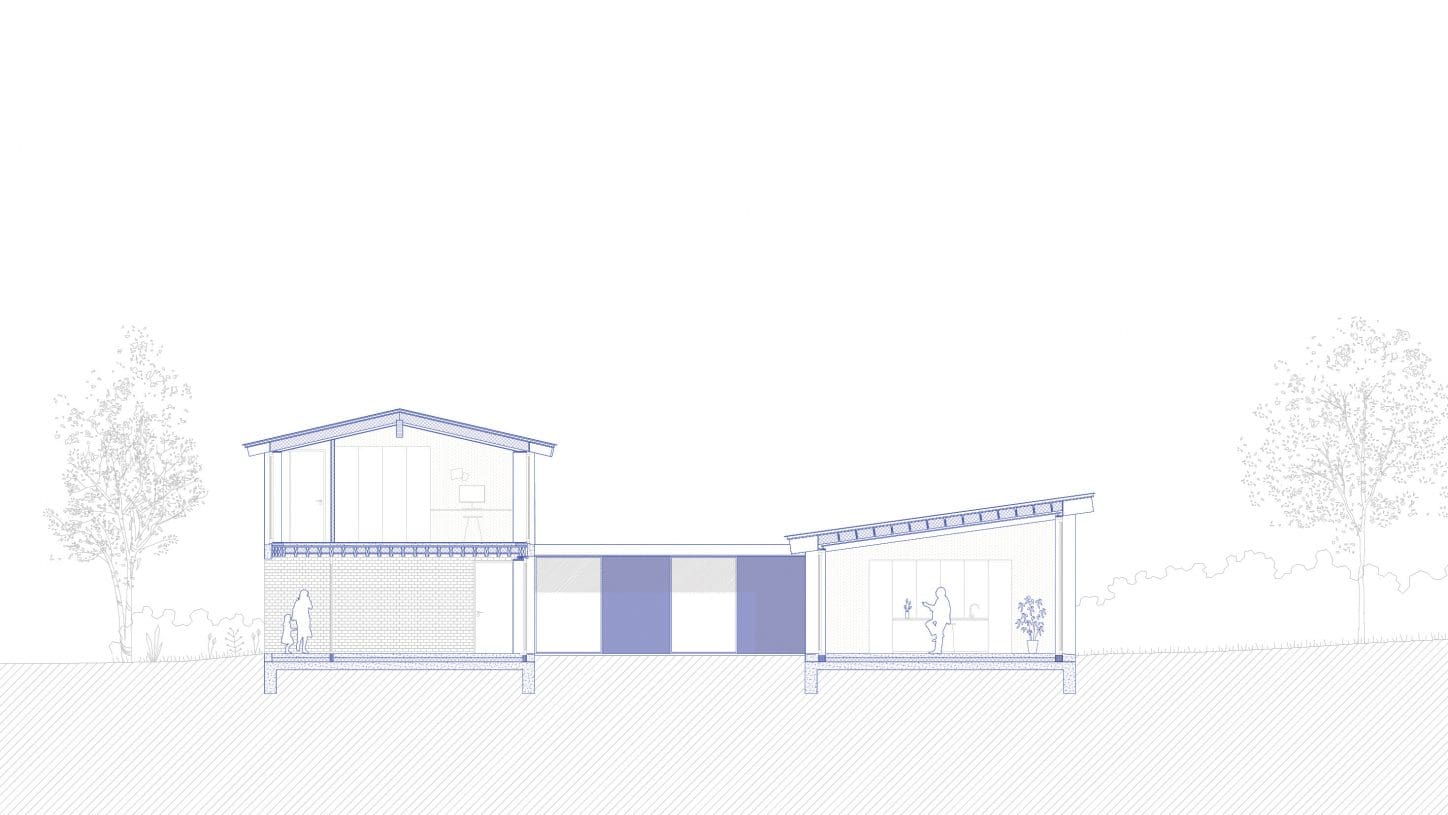

VIJVERHOEK Renovation and extension of a house in rural area, long second of the new house organised around a central patio
long section

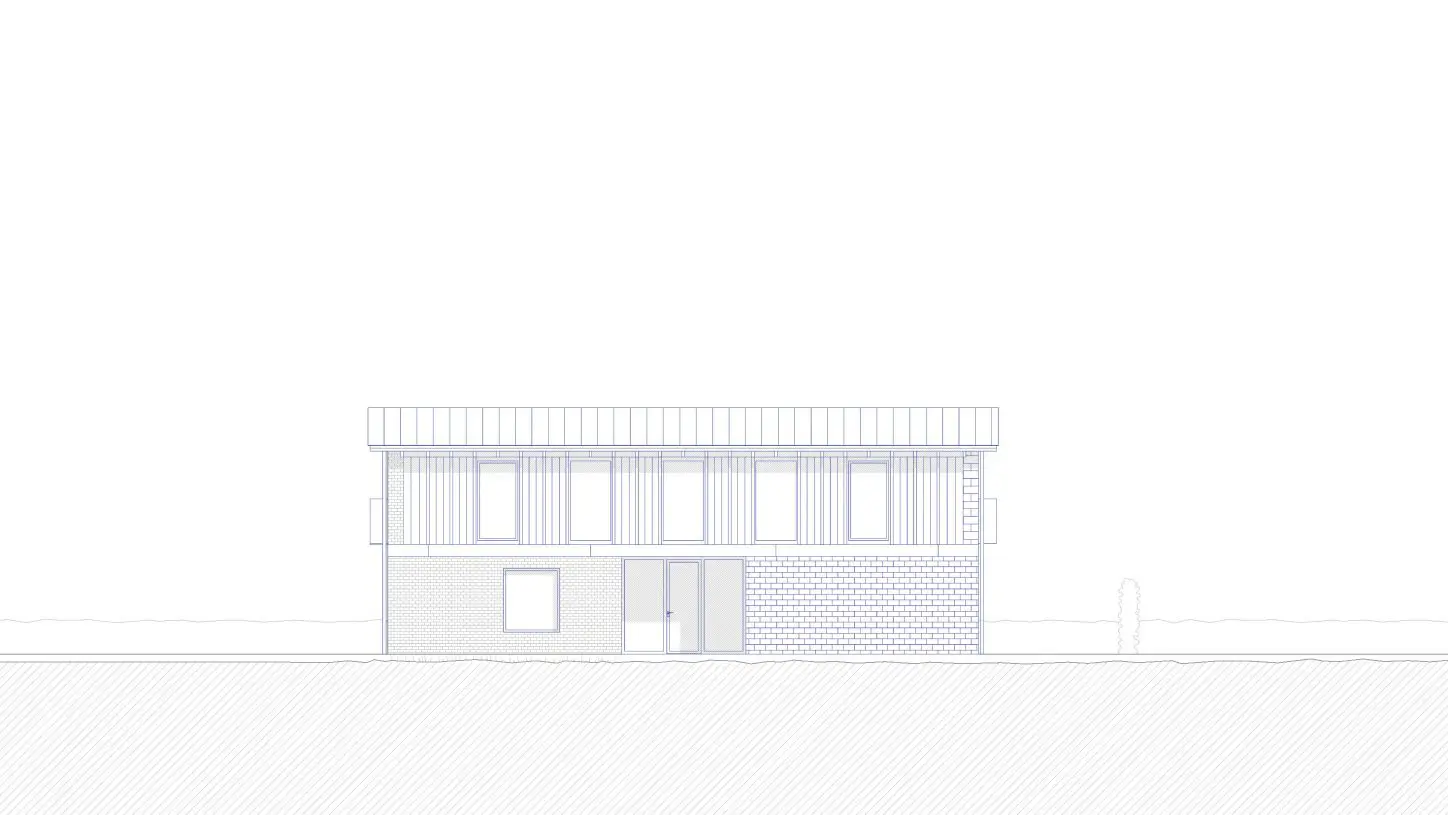

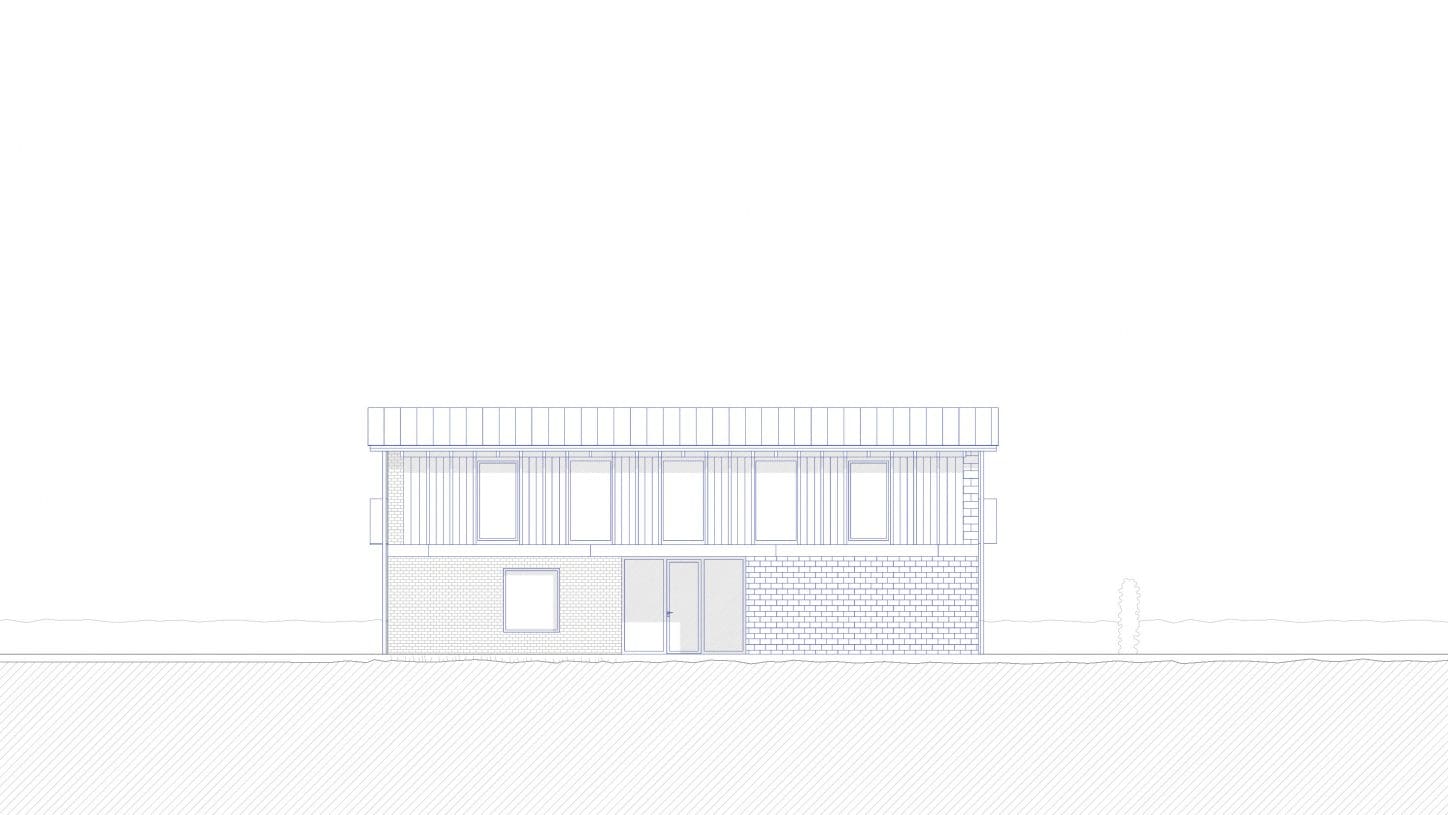

VIJVERHOEK Renovation and extension of a house in rural area, street facade of the new house combining existing and new parament on groundfloor and a wooden facade on first floor
street facade

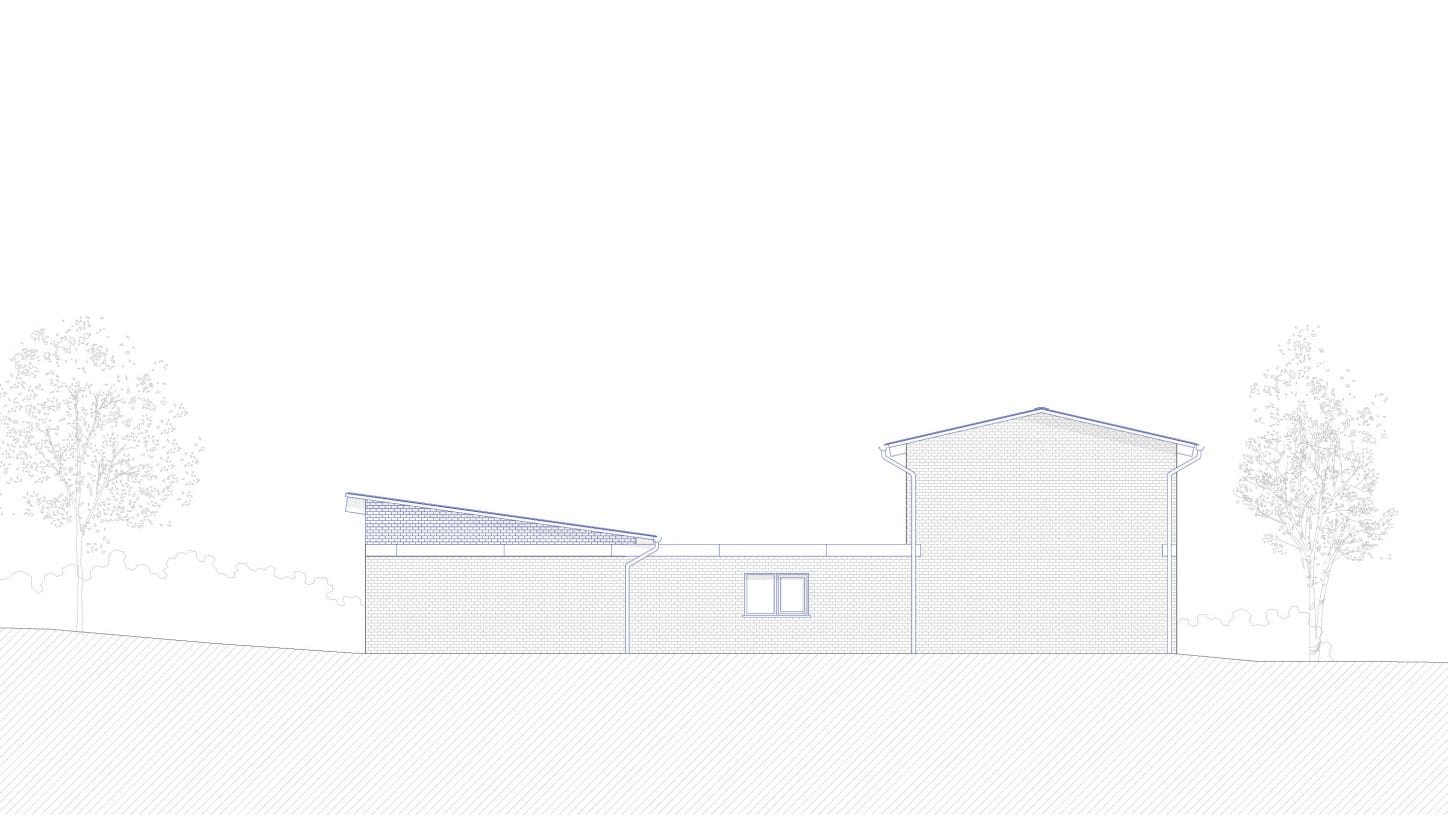

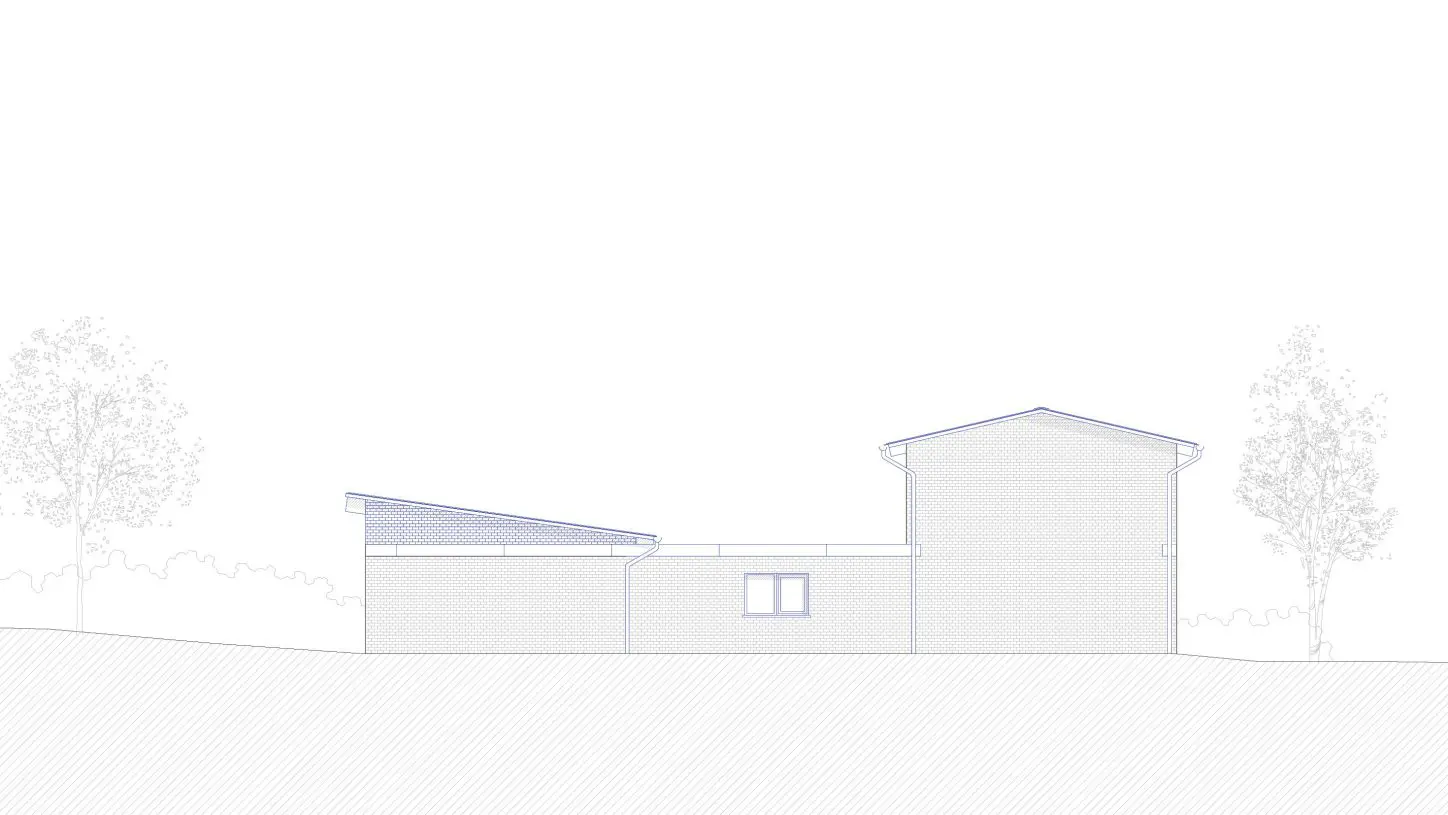

VIJVERHOEK Renovation and extension of a house in rural area, side facade of the new house as a reminder to the profile of the original house
side facade

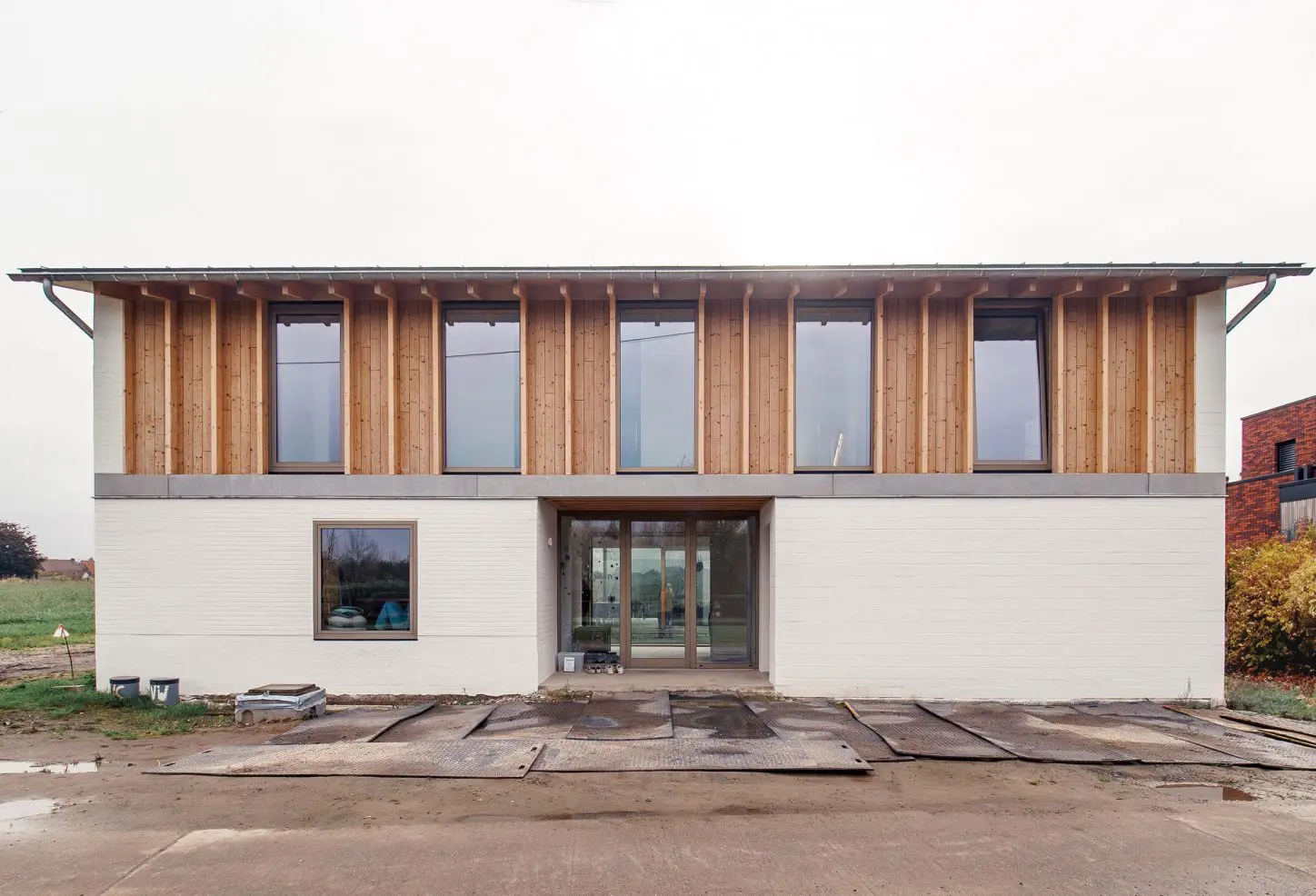

VIJVERHOEK Renovation and extension of a house in rural area, image of front facade

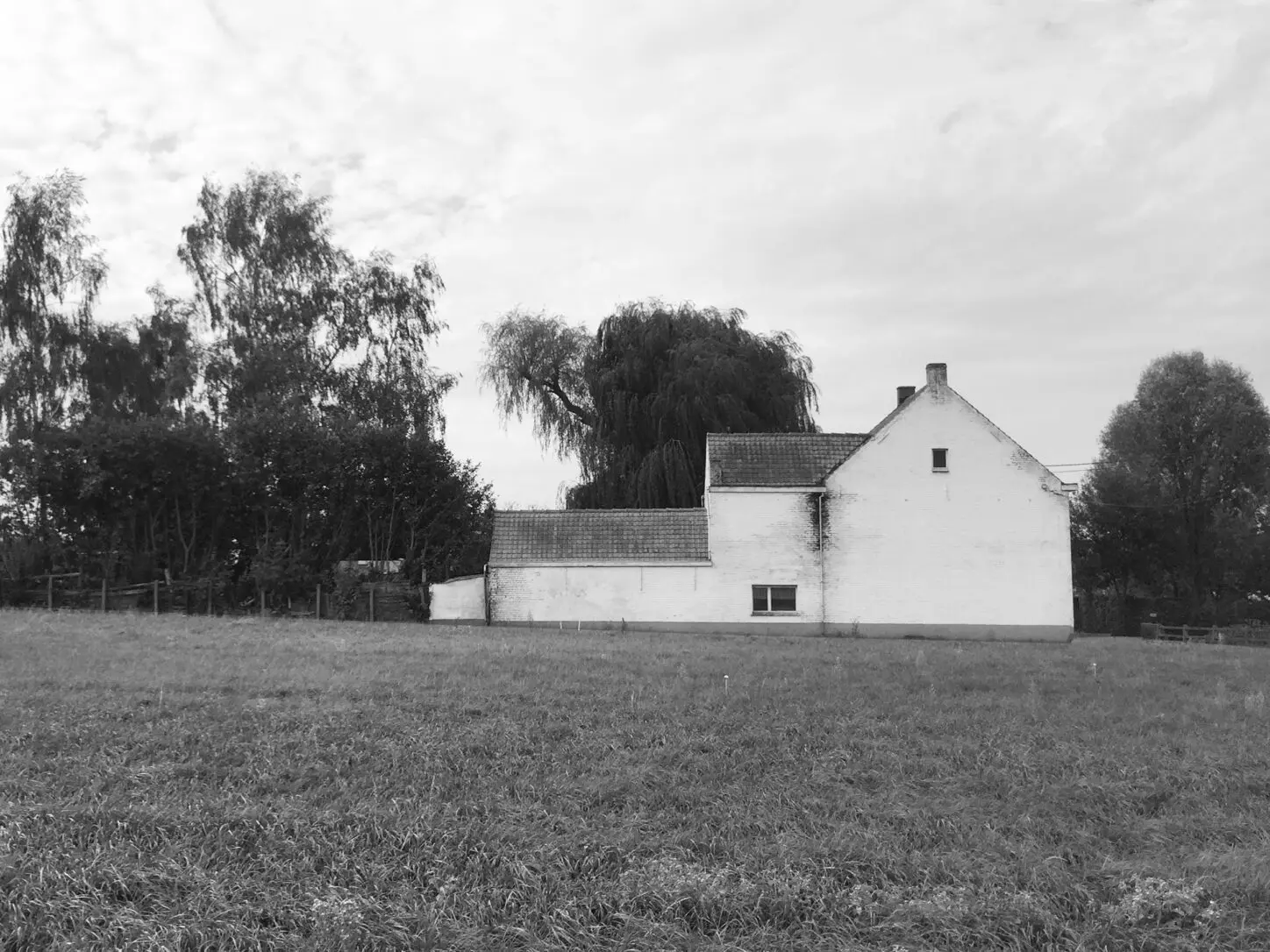

VIJVERHOEK Renovation and extension of a house in rural area, photo of the original house with its consecutive annexes
VIJVERHOEK Renovation and extension of a house in rural area, photo of profile of side facade

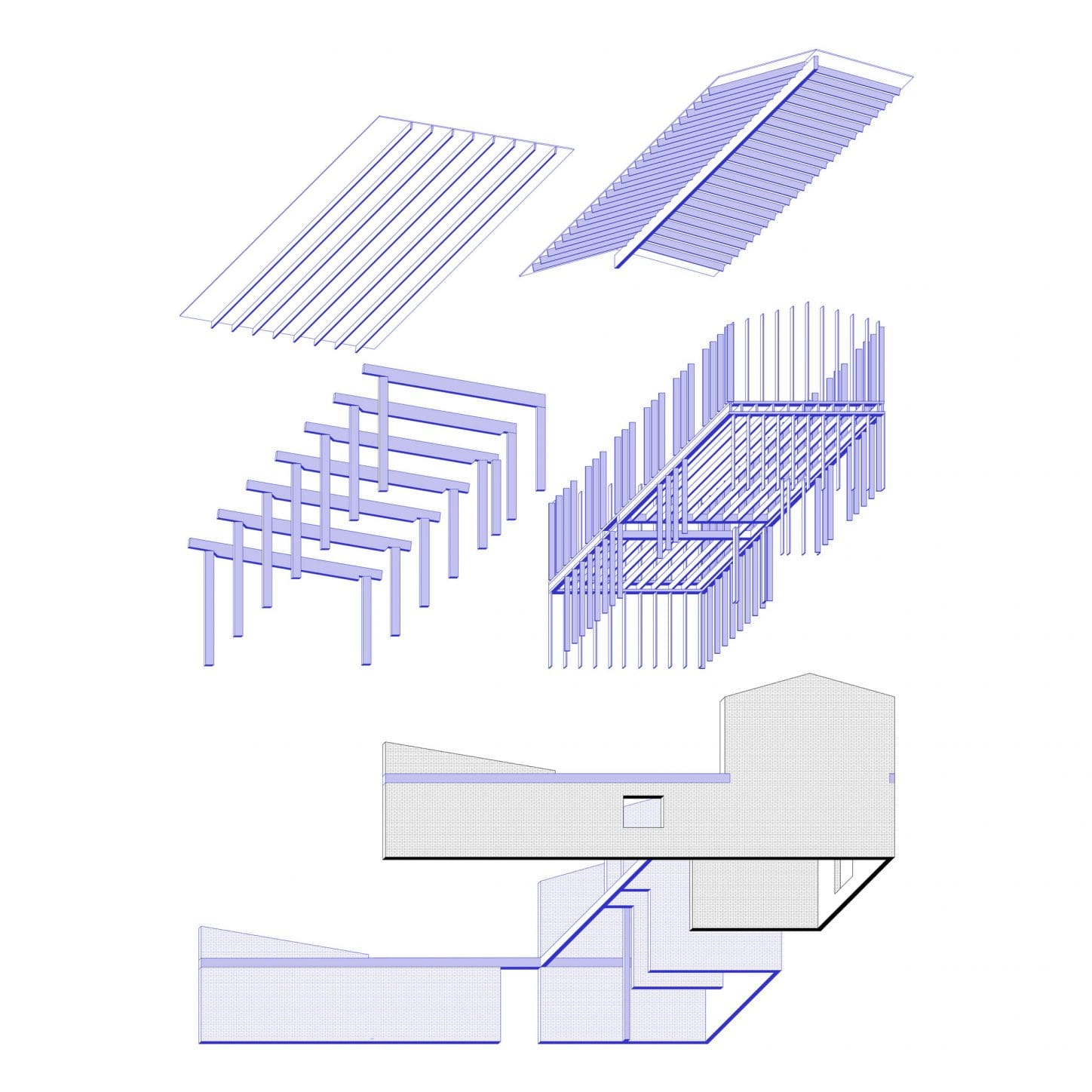

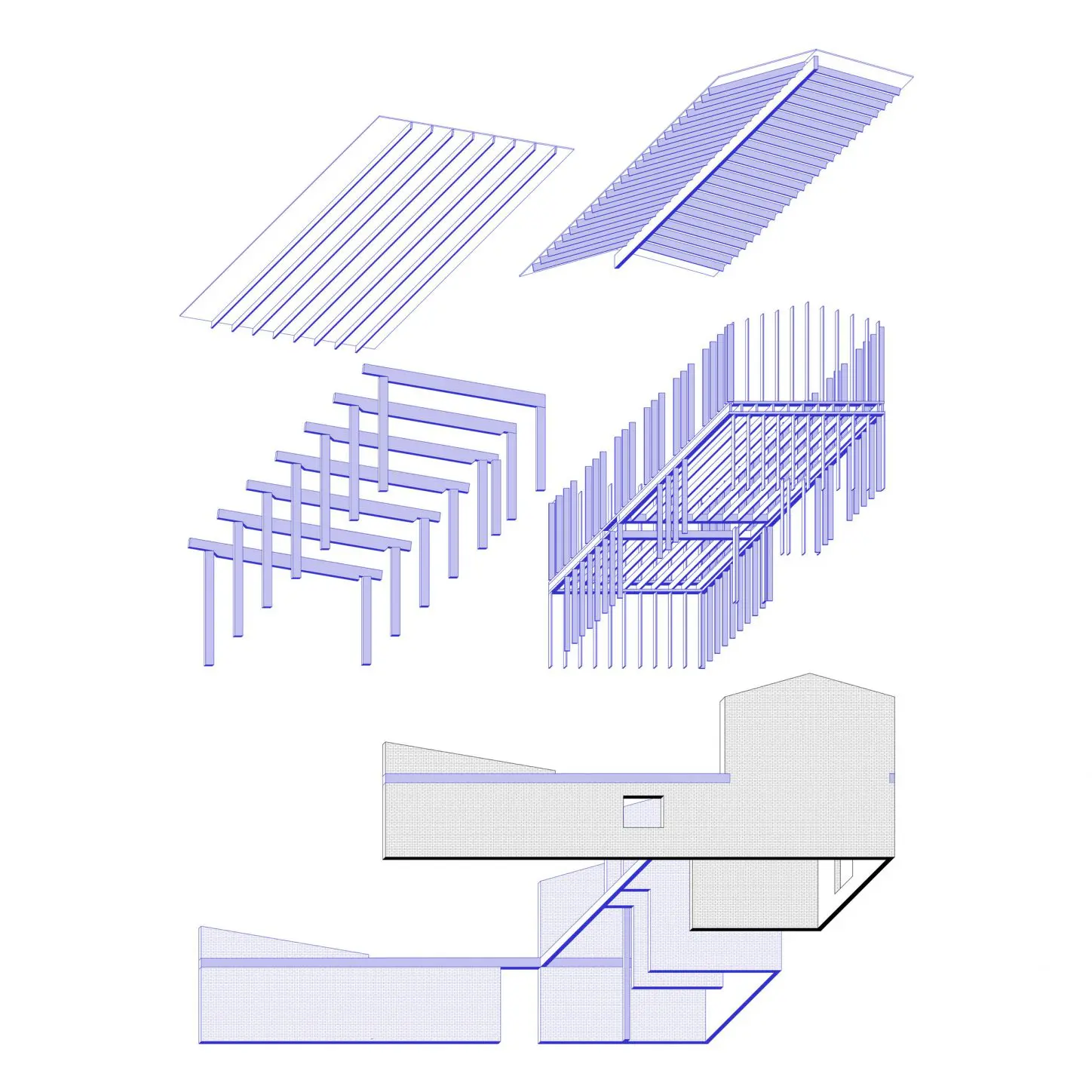

VIJVERHOEK Renovation and extension of a house in rural area, axonometric view of the structure

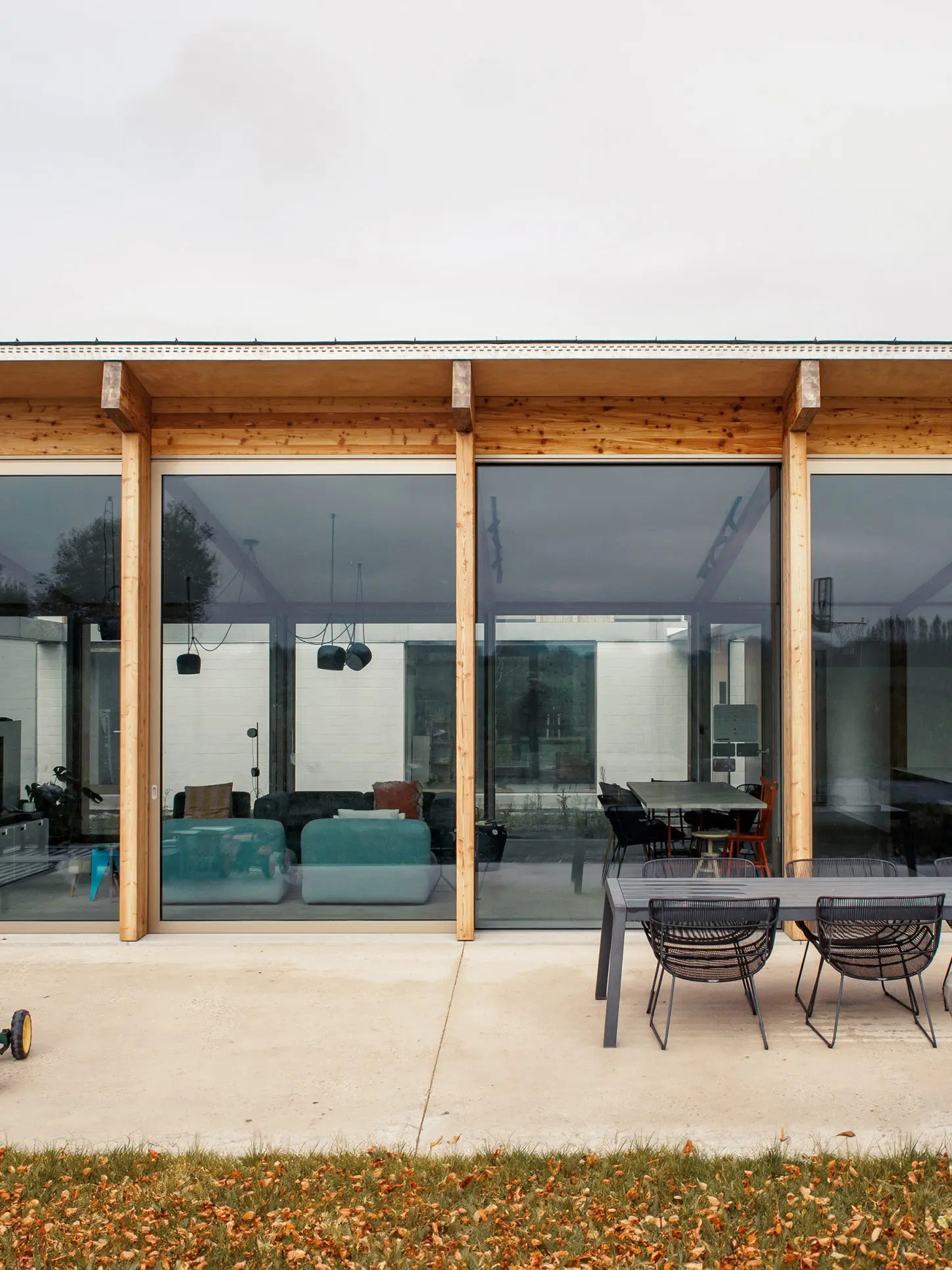

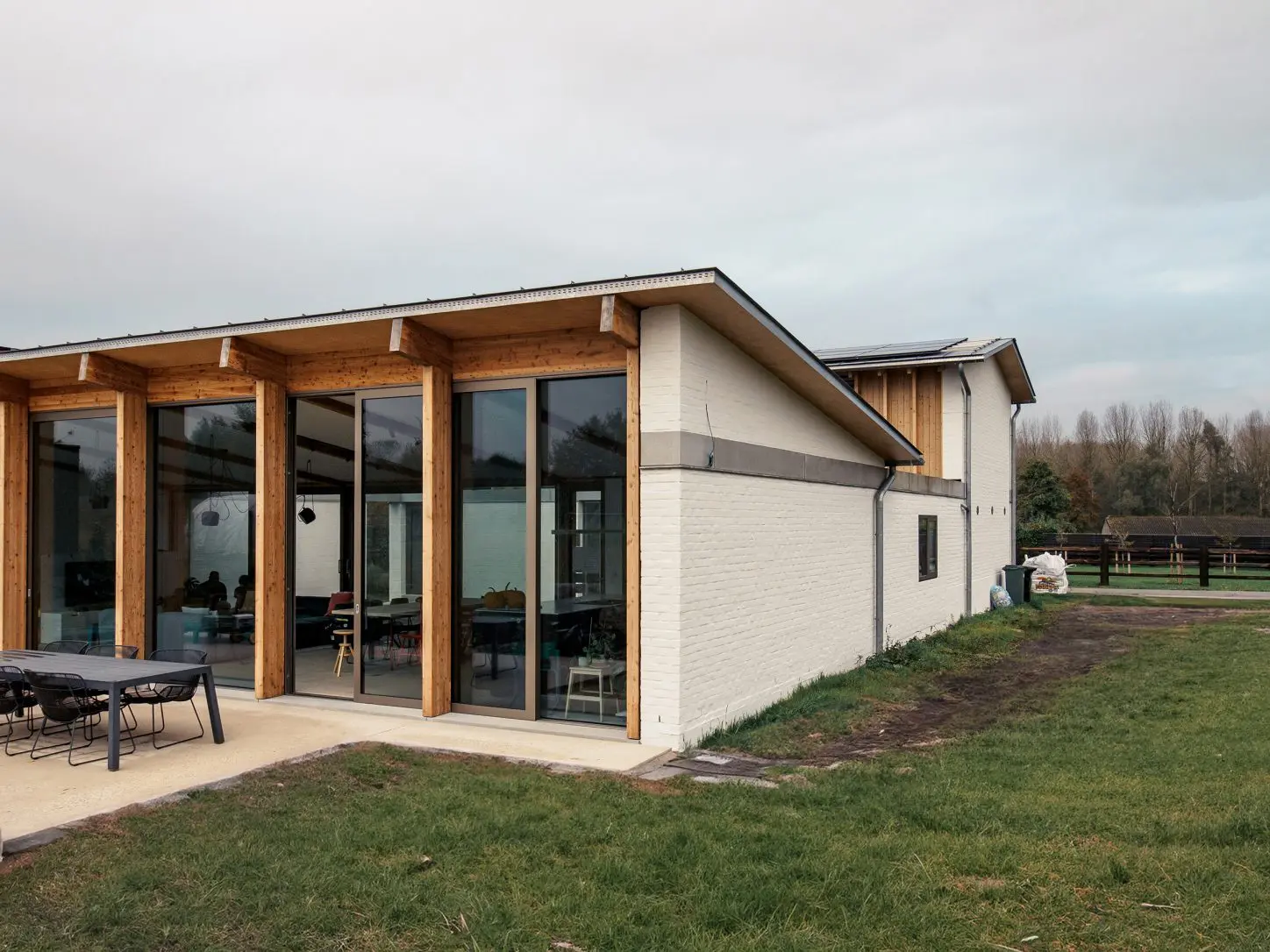

VIJVERHOEK Renovation and extension of a house in rural area, photo of back facade
VIJVERHOEK Renovation and extension of a house in rural area, photo of side and back facade

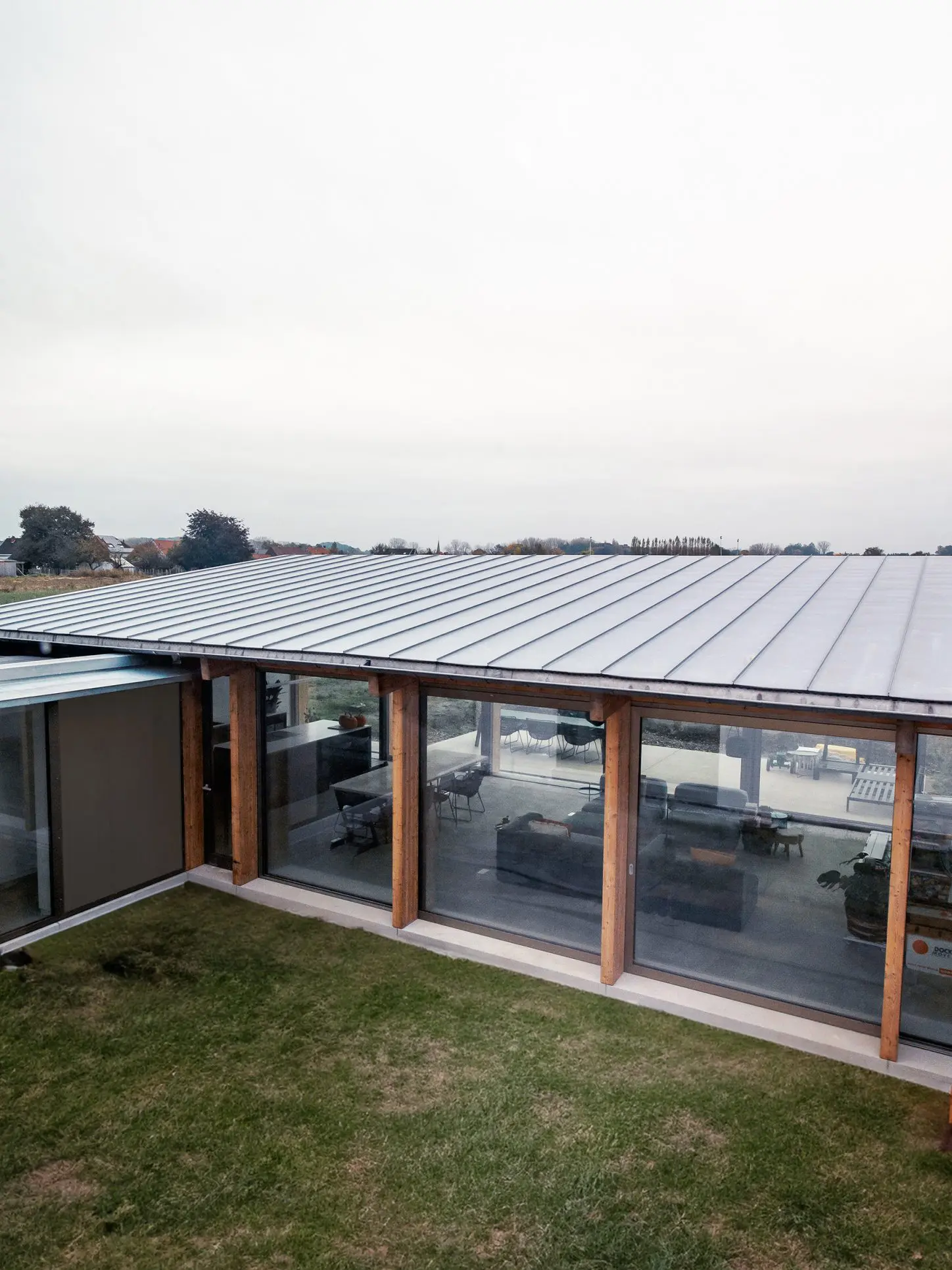

VIJVERHOEK Renovation and extension of a house in rural area, photo of central patio

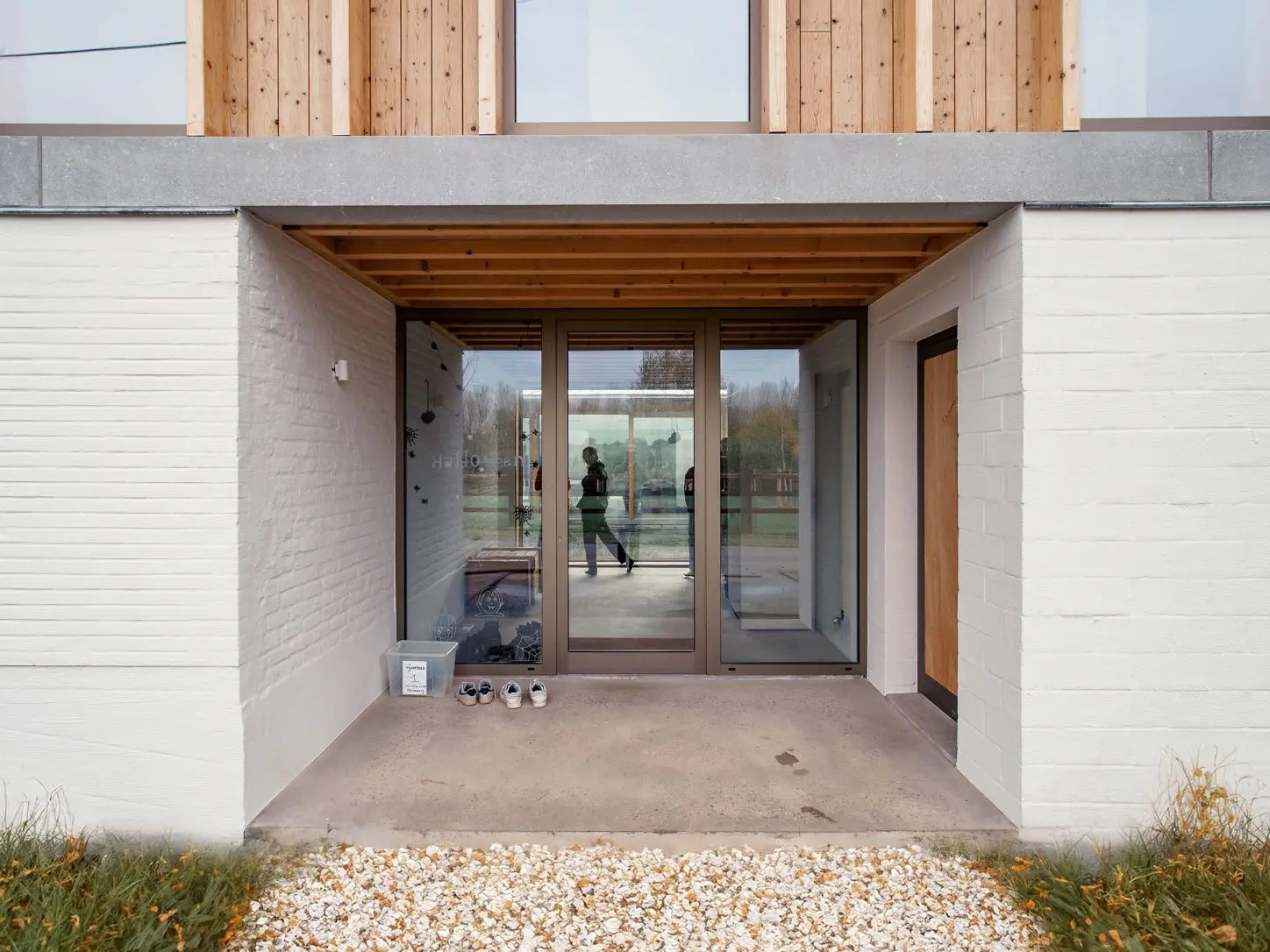

VIJVERHOEK Renovation and extension of a house in rural area, photo of central entrance

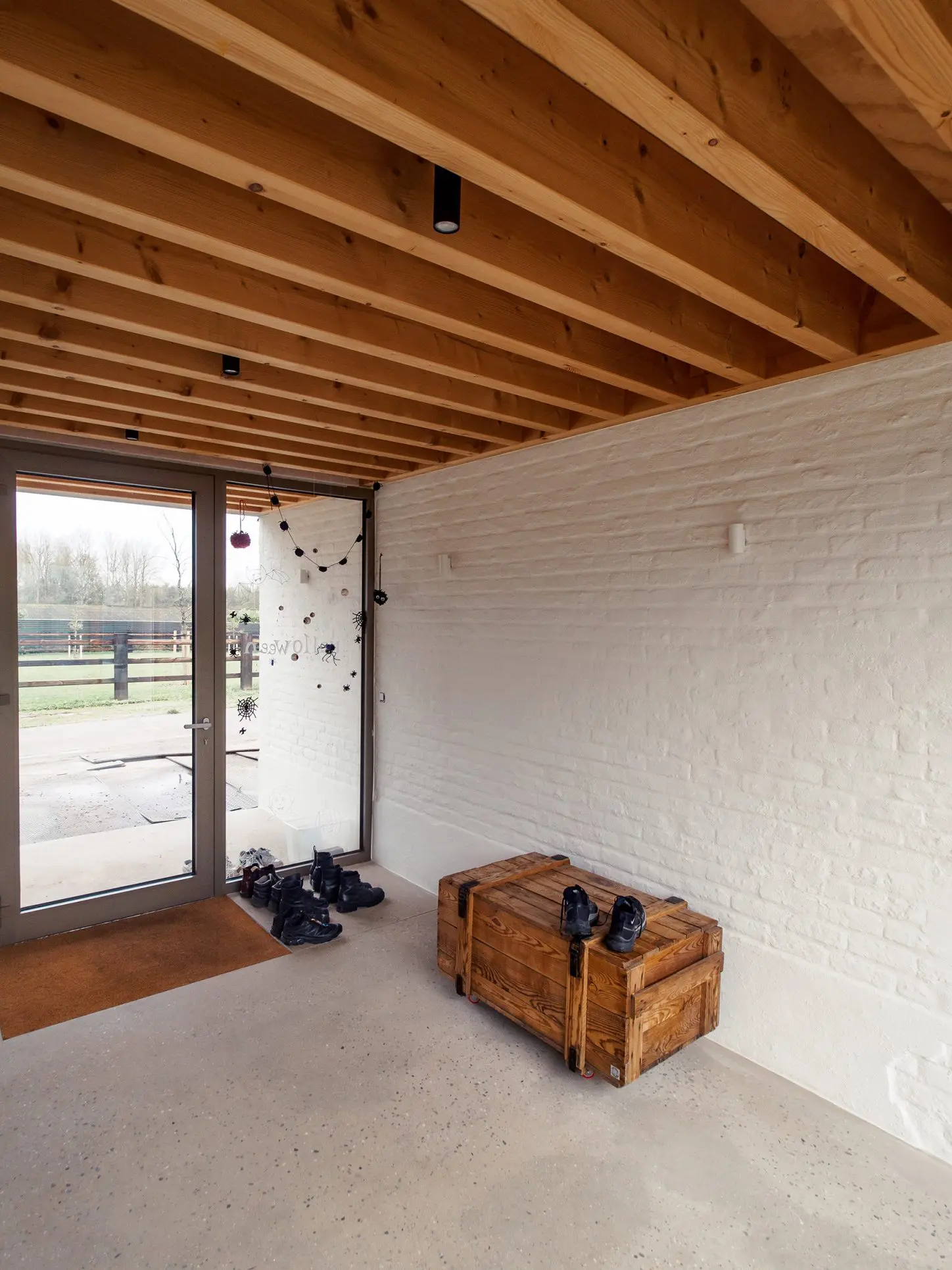

VIJVERHOEK Renovation and extension of a house in rural area, photo of entrance hall

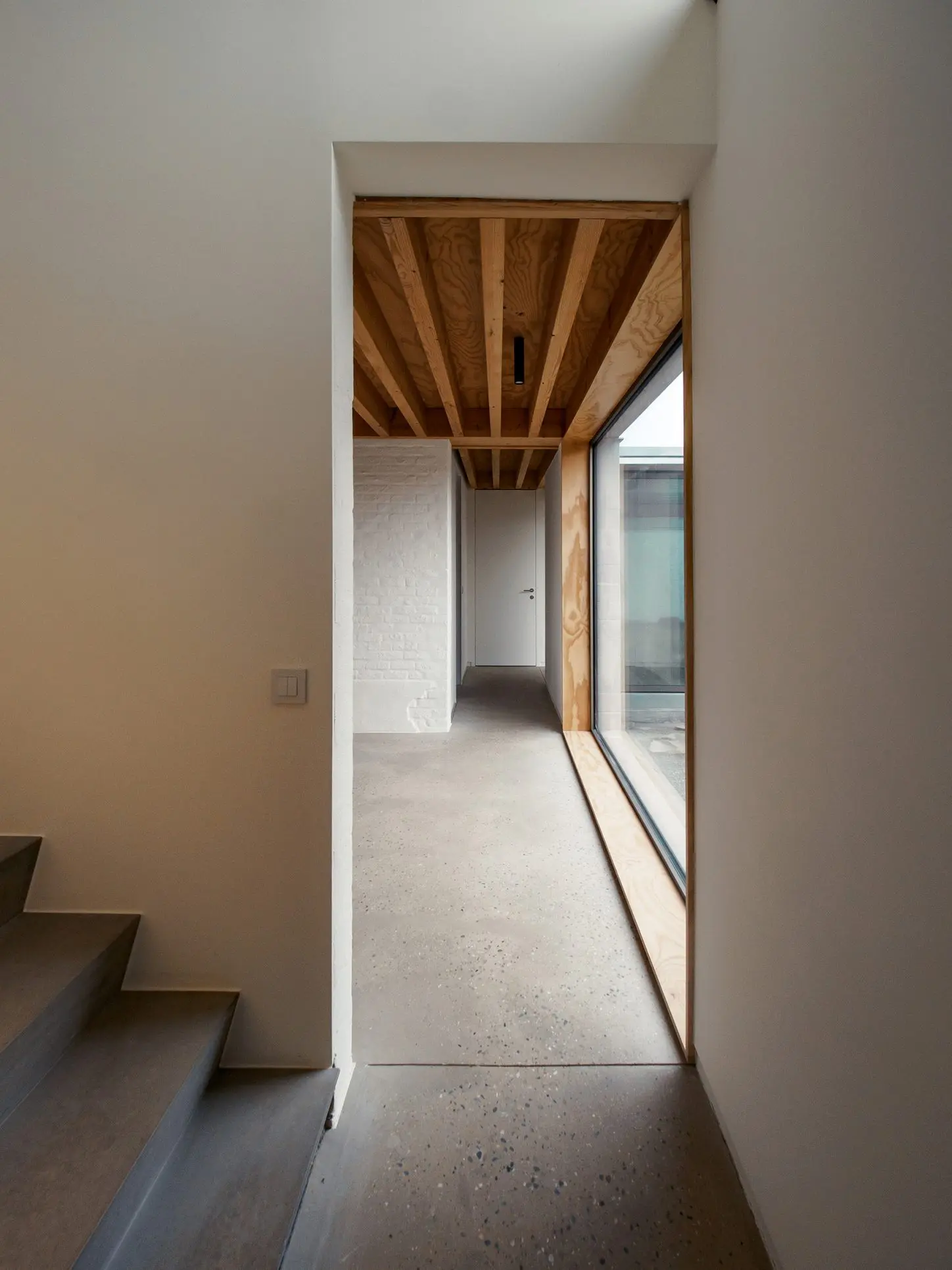

VIJVERHOEK Renovation and extension of a house in rural area, photo of circulation

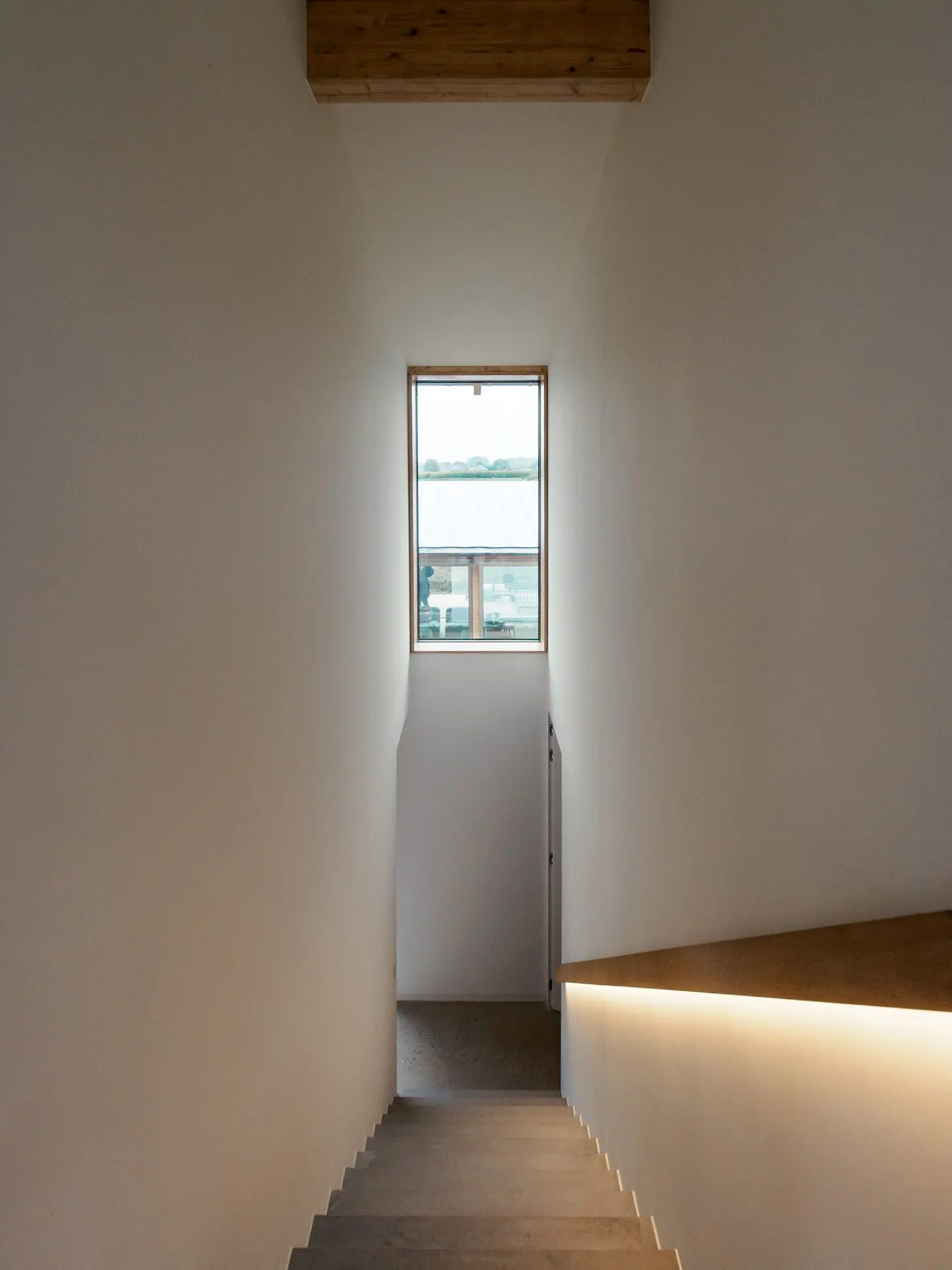

VIJVERHOEK Renovation and extension of a house in rural area, photo of staircase

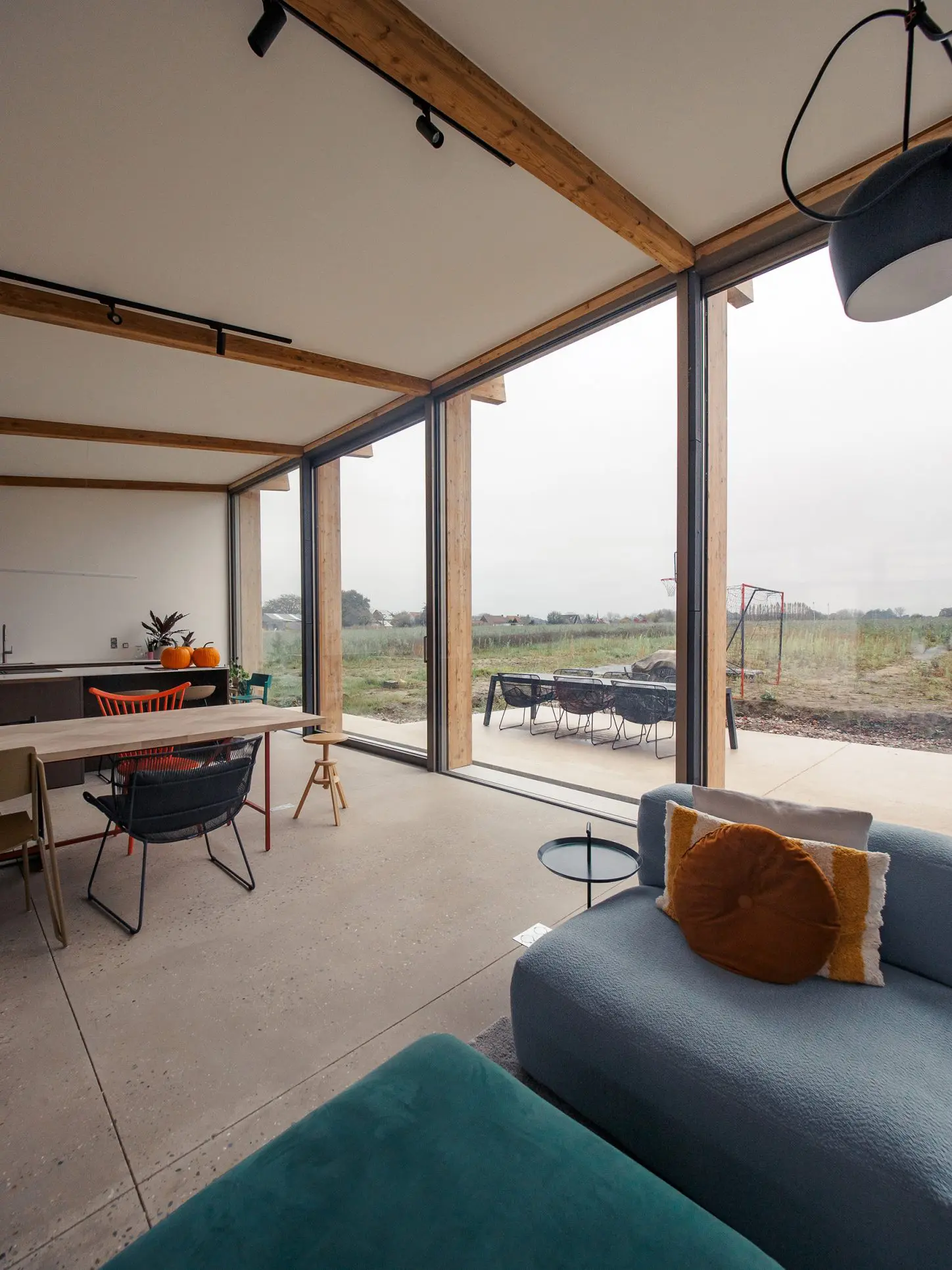

VIJVERHOEK Renovation and extension of a house in rural area, photo of living area

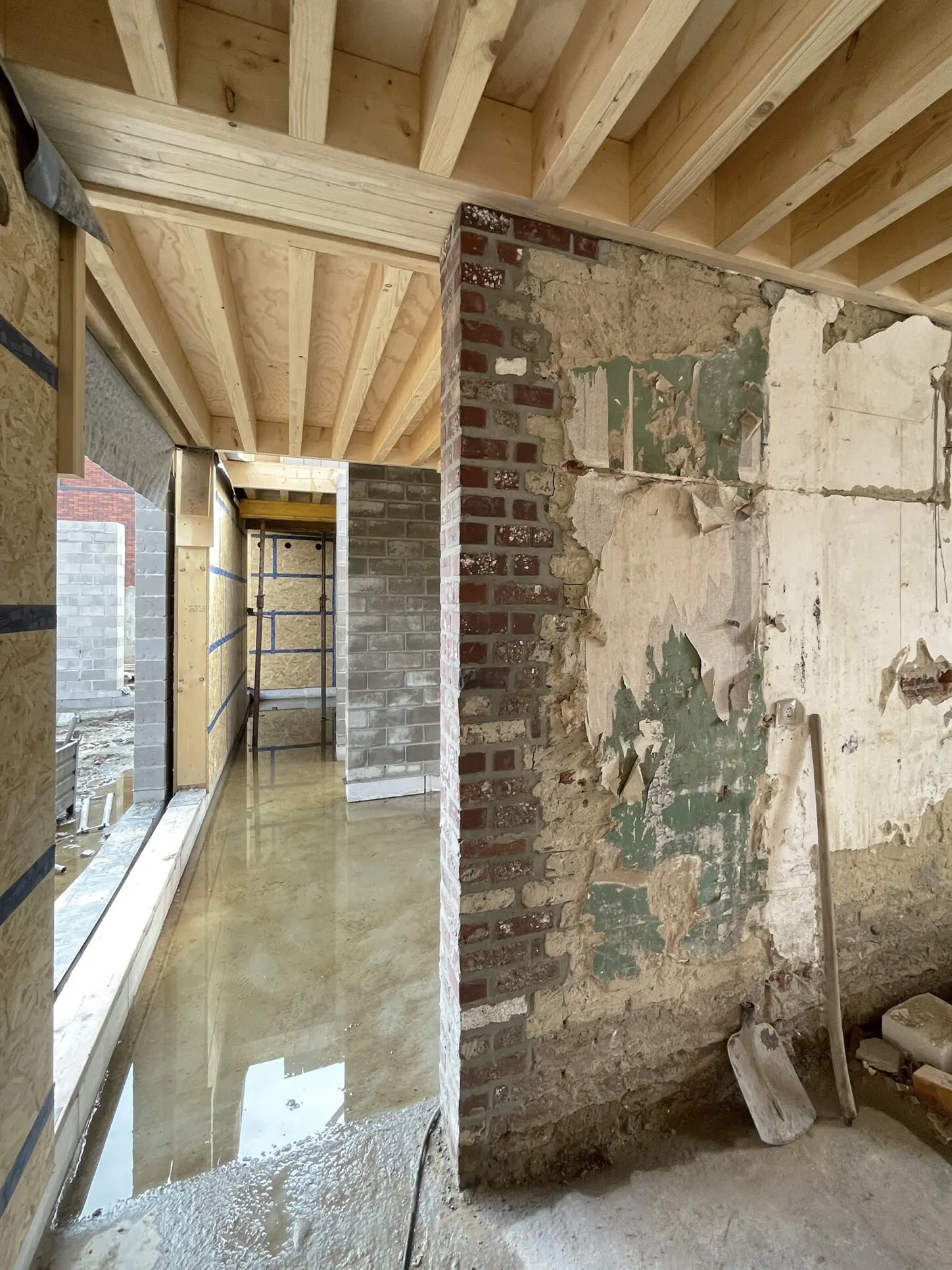

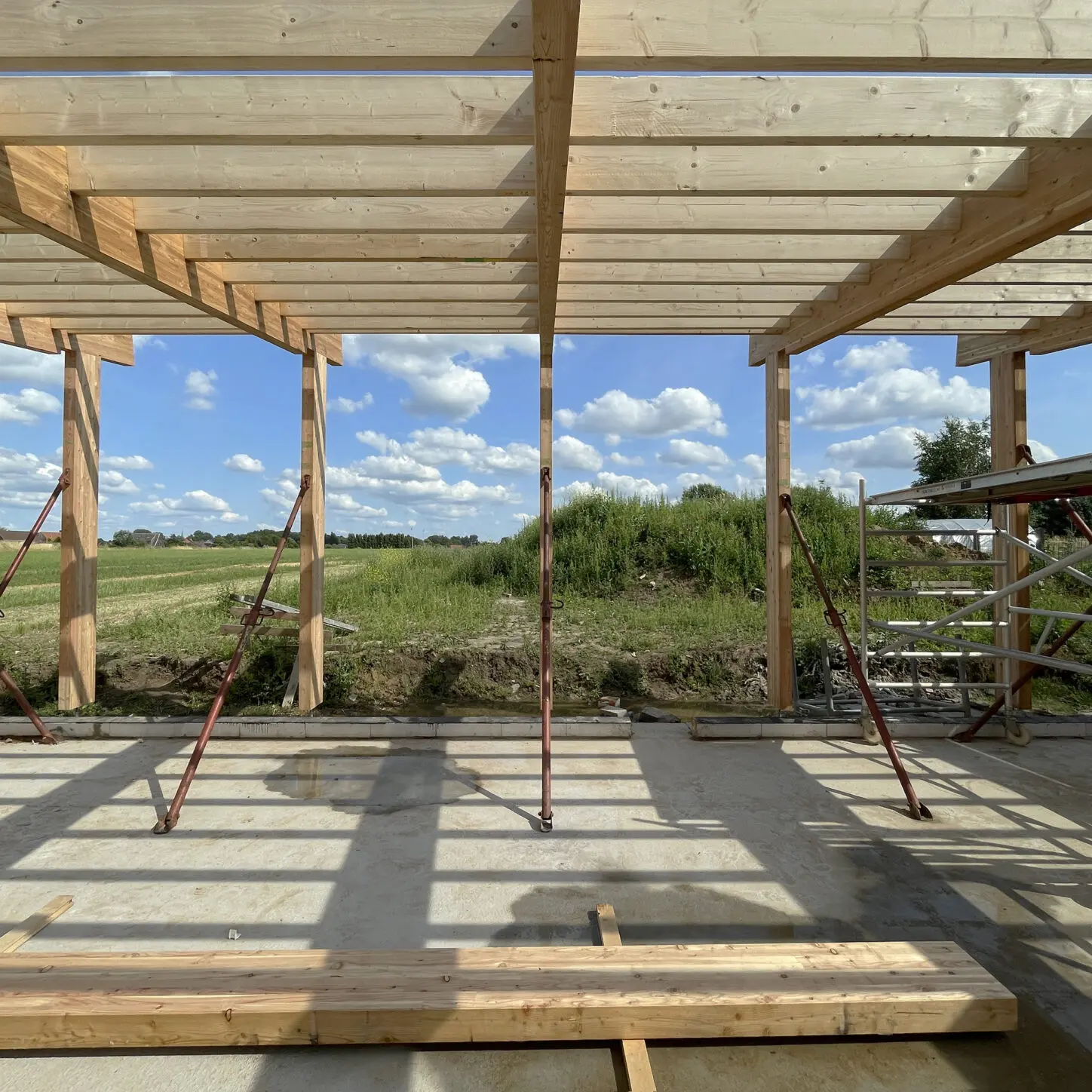

VIJVERHOEK Renovation and extension of a house in rural area, photo of construction of wooden structure
VIJVERHOEK Renovation and extension of a house in rural area, photo of construction
